Yokohama Tires RY023
Request a Quote Request a Brochure Tire Fitment Guide

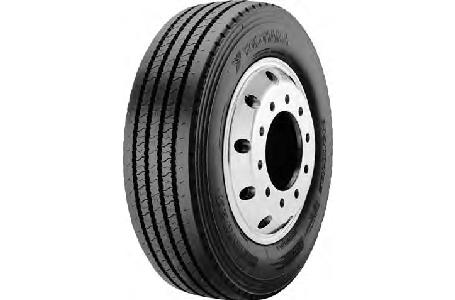

Click here to view full image.
Request a Quote Request a Brochure Tire Fitment Guide
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Durability and high performance under the toughest regional haul and in-city conditions are the hallmarks of the RY023. This sure-footed, five-rib, all-position workhorse features a tough band of additional rubber that protects the sidewall from scrubbing damage caused by curbing and other regional haul and in-city application abuses.

  • Sidewall abrasion guard reduces damage to sidewall caused by curbing.
  • Five-rib tread design (with semi-rounded shoulder) reduces potential for shoulder rippling and tearing and lowers the cost per mile in abrasive applications; it also provides excellent lateral stability and water dispersion, and improved performance and traction.
  • STEM-2 prolongs the casing life by controlling heat and internal stress.
  • Heavy-duty construction designed to meet demands of in-city and regional applications.
  • Durability and retreadability is enhanced with STEM-2 design technology.

Specifications

225/70R19.5
Tire Size 225/70R19.5
Load Range F
Tread Depth 16
Max Speed 75MPH
Revs per Mile 652
Ply 12
Max Tire Load (Single) 3640@95
Max Tire Load (Dual) 3415@95
Overall Width 8.7
Overall Diameter 31.8
245/70R19.5
Tire Size 245/70R19.5
Load Range G
Tread Depth 16
Max Speed 75MPH
Revs per Mile 628
Ply 14
Max Tire Load (Single) 4540@110
Max Tire Load (Dual) 4300@110
Overall Width 9.7
Overall Diameter 33.3
265/70R19.5
Tire Size 265/70R19.5
Load Range G
Tread Depth 17
Max Speed 75MPH
Revs per Mile 612
Ply 14
Max Tire Load (Single) 5070@110
Max Tire Load (Dual) 4675@110
Overall Width 10.3
Overall Diameter 34.3
285/70R19.5
Tire Size 285/70R19.5
Load Range H
Tread Depth 17
Max Speed 75MPH
Revs per Mile 597
Ply 16
Max Tire Load (Single) 6395@120
Max Tire Load (Dual) 6005@120
Overall Width 11.1
Overall Diameter 35.1
255/70R22.5
Tire Size 255/70R22.5
Load Range H
Tread Depth 18
Max Speed 75MPH
Revs per Mile 570
Ply 16
Max Tire Load (Single) 5510@120
Max Tire Load (Dual) 5070@120
Overall Width 10.1
Overall Diameter 36.6
295/75R22.5
Tire Size 295/75R22.5
Load Range G
Tread Depth 19
Max Speed 75MPH
Revs per Mile 520
Ply 14
Max Tire Load (Single) 6175@110
Max Tire Load (Dual) 5675@100
Overall Width 11.1
Overall Diameter 40.2
295/75R22.5
Tire Size 295/75R22.5
Load Range H
Tread Depth 19
Max Speed 75MPH
Revs per Mile 520
Ply 16
Max Tire Load (Single) 6610@120
Max Tire Load (Dual) 6005@120
Overall Width 11.1
Overall Diameter 40.2
11R22.5
Tire Size 11R22.5
Load Range G
Tread Depth 19
Max Speed 75MPH
Revs per Mile 504
Ply 14
Max Tire Load (Single) 6175@105
Max Tire Load (Dual) 5840@105
Overall Width 10.8
Overall Diameter 41.4
11R22.5
Tire Size 11R22.5
Load Range H
Tread Depth 19
Max Speed 75MPH
Revs per Mile 504
Ply 16
Max Tire Load (Single) 6610@120
Max Tire Load (Dual) 6005@120
Overall Width 10.8
Overall Diameter 41.4
11R24.5
Tire Size 11R24.5
Load Range G
Tread Depth 19
Max Speed 75MPH
Revs per Mile 483
Ply 14
Max Tire Load (Single) 6610@105
Max Tire Load (Dual) 6005@105
Overall Width 10.7
Overall Diameter 43.4
11R24.5
Tire Size 11R24.5
Load Range H
Tread Depth 19
Max Speed 75MPH
Revs per Mile 483
Ply 16
Max Tire Load (Single) 7160@120
Max Tire Load (Dual) 6610@120
Overall Width 10.7
Overall Diameter 43.4
12R22.5
Tire Size 12R22.5
Load Range H
Tread Depth 20
Max Speed 75MPH
Revs per Mile 490
Ply 16
Max Tire Load (Single) 7390@120
Max Tire Load (Dual) 6780@120
Overall Width 11.5
Overall Diameter 42.7
215/75R17.5
Tire Size 215/75R17.5
Tread Depth 16
Revs per Mile 674
Ply 16
Max Tire Load (Single) 4805@125
Max Tire Load (Dual) 4540@125
Overall Width 8.5
Overall Diameter 30.6
235/75R17.5
Tire Size 235/75R17.5
Tread Depth 16
Revs per Mile 661
Ply 16
Max Tire Load (Single) 6005@125
Max Tire Load (Dual) 5675@125
Overall Width 9.4
Overall Diameter 31.7
285/75R24.5
Tire Size 285/75R24.5
Load Range G
Tread Depth 19
Revs per Mile 503
Ply 14
Max Tire Load (Single) 6175@110
Max Tire Load (Dual) 5675@110
Overall Width 10.9
Overall Diameter 41.4
