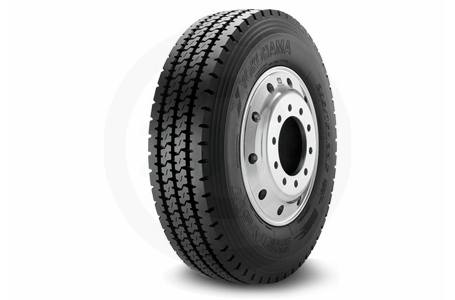

Yokohama Tires TY517
Request a Quote Request a Brochure Tire Fitment Guide
Click here to view full image.
Request a Quote Request a Brochure Tire Fitment Guide
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

There's power in these drive axle tires-maximum power. The popular TY517 drive tire delivers outstanding traction, long even wear and superior durability. STEM-2 technology enables this tough performer to stand up to destructive forces, resulting in multiple retreads and lower maintenance costs.

  • 28/32" Rib-Block Tread Depth - Delivers long wear and road-grabbing power for the long haul without any compromises in traction.
  • Tapered Center Groove - This center-shaped groove promotes stone ejection and reduces tread-stone damage for enhanced casing life and retreadability.
  • Solid Outer Shoulder - Strong, durable, solid shoulder block ensures flat, even wear on all types of 2- and 3-axle tractors and trucks.
  • Three Large Circumferential Grooves - Extra wide, self-cleaning, V-shaped grooves for improved water dispersion, lateral stability and long, even wear.

Specifications

295/75R22.5
Tire Size 295/75R22.5
Load Range G
Tread Depth 28
Max Speed 75MPH
Revs per Mile 512
Ply 14
Max Tire Load (Single) 6175@110
Max Tire Load (Dual) 5675@110
Overall Width 11.4
Overall Diameter 40.7
295/75R22.5
Tire Size 295/75R22.5
Load Range H
Tread Depth 28
Revs per Mile 512
Ply 16
Max Tire Load (Single) 6610@120
Max Tire Load (Dual) 6005@120
Overall Width 11.4
Overall Diameter 40.7
11R22.5
Tire Size 11R22.5
Load Range G
Tread Depth 28
Max Speed 75MPH
Revs per Mile 497
Ply 14
Max Tire Load (Single) 6175@105
Max Tire Load (Dual) 5840@105
Overall Width 11.1
Overall Diameter 42.0
11R22.5
Tire Size 11R22.5
Load Range H
Tread Depth 28
Revs per Mile 497
Ply 16
Max Tire Load (Single) 6610@120
Max Tire Load (Dual) 6005@120
Overall Width 11.1
Overall Diameter 42.0
11R24.5
Tire Size 11R24.5
Load Range G
Tread Depth 28
Max Speed 75MPH
Revs per Mile 474
Ply 14
Max Tire Load (Single) 6610@105
Max Tire Load (Dual) 6005@105
Overall Width 11.1
Overall Diameter 44.0
11R24.5
Tire Size 11R24.5
Load Range H
Tread Depth 28
Revs per Mile 474
Ply 16
Max Tire Load (Single) 7160@120
Max Tire Load (Dual) 6610@120
Overall Width 11.1
Overall Diameter 44.0
285/75R24.5
Tire Size 285/75R24.5
Load Range G
Tread Depth 28
Revs per Mile 497
Ply 14
Max Tire Load (Single) 6175@110
Max Tire Load (Dual) 5675@110
Overall Width 10.9
Overall Diameter 42.0
